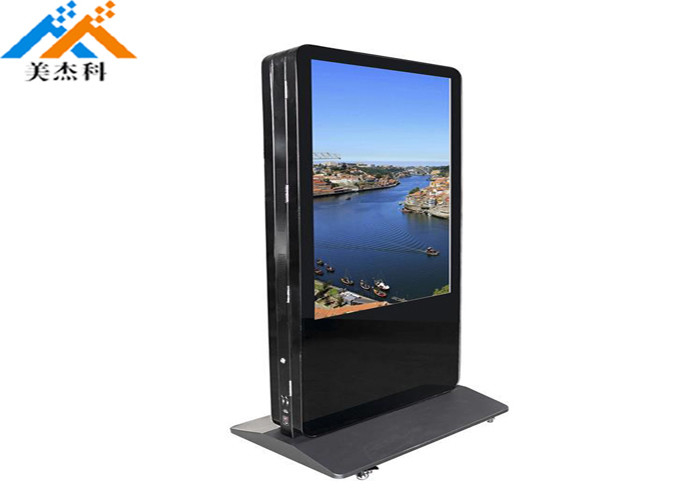

Photo booth machine 43 inch capacitive touch monitor, football stadium video advertising screen, lcd digital signage



Product Description

Panel parameters	Screen size	43	50	55	65
	Display area	941.184(H) ×529.416(V)	1095.84(H)x616.41(V)	1209.6(H)x680.4(V)	1428.48(H)x803.52(V)
	Aspect Ratio	16:9	16:9	16:9	16:9
	Resolution	1920x1080	1920x1080	1920x1080	1920x1080
	Pixel spacing	0.4902×0.4902 mm	0.57075×0.57075 mm	0.630×0.630 mm	0.744×0.744 mm
	Number of Color	16.7M	16.7M	16.7M	16.7M
	Brightness	350cd/m2	300cd/m2	300cd/m2	400cd/m2
	Contrast	1500:1	3000:1	4000:1	5000:1
	View angle	178°/178°	178°/178°	178°/178°	178°/178°
	Response time	6ms	5ms	5ms	8ms
	Life Time	≥50000h	≥50000h	≥50000h	≥50000h
Android network Mainboard parameters	CPU	A20 Dual Core	A20 Dual Core	A20 Dual Core	A20 Dual Core
	CPU Clock Speed	1.6GHz	1.6GHz	1.6GHz	1.6GHz
	RAM	DDR3 1G	DDR3 1G	DDR3 1G	DDR3 1G
	Memory	8G (Extensible)	8G (Extensible)	8G (Extensible)	8G (Extensible)
	Interface specification	USB*2/RJ45*1/SD*1	USB*2/RJ45*1/SD*1	USB*2/RJ45*1/SD*1	USB*2/RJ45*1/SD*1
	network	Ethernet,WiFi	Ethernet,WiFi	Ethernet,WiFi	Ethernet,WiFi
	Information Publishing System	Multimedia Information Publishing Software 5.0	Multimedia Information Publishing Software 5.0	Multimedia Information Publishing Software 5.0	Multimedia Information Publishing Software 5.0
Audio device	speaker	2*8Ω5W	2*8Ω5W	2*8Ω5W	2*8Ω5W
Environment condition	Working Temperature	0℃~50℃	0℃~50℃	0℃~50℃	0℃~50℃
	Working humidity	20%~80% (Non frosted)	20%~80% (Non frosted)	20%~80% (Non frosted)	20%~80% (Non frosted)
Power parameter	Power	AC 110~240V, 50/60Hz	AC 110~240V, 50/60Hz	AC 110~240V, 50/60Hz	AC 110~240V, 50/60Hz
	Rated power	≤85W	≤95W	≤105W	≤190W
	standby power	≤1W	≤1W	≤1W	≤1W
Appearance	Appearance material	Aluminum profile+metal back-shell+ toughened glass
	Color	Black,silver, Other color is available
Installation	Installation mode	Floor-standing
Whole machine parameters	Whole machine size	650x1800x45mm	730x1816x45mm	807x1940x50mm	950x2000x85mm
	Machine weight	24Kg	27Kg	35Kg	41Kg



Computer Configuration Scheme
Configuration	General configuration:1000M	Intermediate configuration: i3	Advanced configuration: i5	Best configuration: i7
Chipset	Intel Chipset
CPU	Intel 1000M	Intel Core i3	Intel Core i5	Intel Core i7
Memory	4G DDR3 Memory/64G Solid Hard Disk	4G DDR3 Memory/64G Solid Hard Disk	4G DDR3 Memory/64G Solid Hard Disk	4G DDR3 Memory/64G Solid Hard Disk
GPU	Intel Core GPU Intel HD Graphics	Intel Core GPU Intel HD Graphics	Intel Core GPU Intel HD Graphics	Intel Core GPU Intel HD Graphics
Interface	2 USB2.0,2 USB 3.0,1 RJ45 network interface,1 HDMI,1 LINE output,1 MIC input,support wifi.
Operating system	Windows 7 Ultimate























Product Overviews

• Support Format: Photo format, JPEG,BMP,PNG. Video format, MPG,MPEG,DAT,MP4,AVI,VOB,TRP,TP,M2TS,TS,RM,RMVB,MKV,DIVX,MOTONJPEG,ASF,WMV,FLV. Music format, MP3,AAC-LC,WMA.
• Automatical and cycle play when power on,play follow data name or playlist.
• 5 groups of automatic power on/off with volume can be set. Daily and weekly timer power on/off.
• Multiple time display mode.
• Support photo show time, and various slide modes can be set.
• Support photo/music/photo/video/music/all/playlist.
• Support playlist: play photo/video/music and subtitles in the specified time.
• Support one roll.txt can set on or off, multiple marguee color and back color.
• Support photo/video all repeat, single repeat, or not repeat.
• Support power resume function.
• Support USB high speed update information, support USB upgrade function.
• Effect adjust: brightness, contrast, color, sharpness, backlight, noise reduction, video mode.
• Support rotate menu90/270/0/180 degree, support vertical LCD products.
• Support check the data of photo or video.
• AD insert: 1-60 minute, up to 9 AD can be insert.
• New function: Can be set split-screen 1 to 10 sections for broadcasting video and photos, free to set the sections. (request this function should be informed when ordering).



MJK ELECTRONICS CO., LTD


was established in 2005. Our company is located in shenzhen, China.Our company is a professional Hi-Tech enterprise engaged in all kinds of LCD digital signage displays such as outdoor kiosks,interactive touch kiosks, touch screen table ,wall mounted displays,floor standing displays,,LCD monitor ,videowall,etc.which are the most widely using media in retail, shopping center, restaurant, hotel, bank, building, airport,showroom etc.

We have a professional and precise technical support team, including software development engineer, electronic engineer, construction engineer, who are outstanding in the digital signage.As one of the leading company in digital signage,MJK offers very innovative, stylish, and full-function products, which are welcome by the clients from over fifty countries and areas.

MJK always takes the strict QMS system to control quality for Zero Fault, so as to meet various standards from clients worldwide. Our products acquire CE, FCC, ROHS,3C certifications so far.

Having rich experience in OEM & ODM cooperation, we are capable of offering you factory price with guaranteed quality as well as complete after-sale service. We have and will always try our best to meet every possible demand of our customers.

FAQ

Q1: Are you a factory or a trading company?
A: We are a factory and we have 2 factories.We integrate R&D team,manufacture,quality control team,sale and after-sale service.

Q2: How many engineers you have?

A: We have 15+ hardware engineers and 20+ software engineers.

Q3: What is your MOQ?

A:Any quantity is acceptable for your order, and the price is negotiable for large quantity.


Q4:what brand of screen are you using?

A:we always use LG,AUO ,BOE, , and CHIMEI screens etc.

Q5: Do you have your own enclosure factory?

A:Yes, we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM or ODM service would be also welcome.

Q6: How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery.

Q7: What will you do if the product be nature damage within warranty time and how about out that time?
A: Well, our engineers and QC department will give some quite simple questions to help us confirm the questions and give you a report and the free replacement will be send.

Also, we will just request a very low price for replacement part, if the product out of warranty time.

Q8: Can I customize the product I ordered?
A: Of course, customization offer from customers are most welcome in our company.
